Complete chassis Top-Kart KZ Dreamer model CIK FIA approved

Version XX!

Top-Kart, always representing the highest quality MADE IN ITALY, presents the brand new Dreamer chassis by categories with the gearbox.

Developed thanks to the experience of the best drivers in the international arena, the Dreamer is a chassis that adapts to different track conditions.

The simplicity of set-up is the strong point of this frame, with a few small adjustments and it is very easy to find the best set-up immediately when the track conditions vary or according to the driver’s driving. The braking system, V11, together with the new snap-on distributor GOLD, is very “modular” avoiding blocking of the wheels during braking.

New version with double diameter spindles (25mm/17MM) for best performance

CIK FIA approved for all KZ categories

* Homologation currently valid CIK/FIA : 017-CH-66
* Pipes 25CrMo4 D.30/32mm
* Wheelbase 1040mm
* Axle D.50x1030x2
* Bearing Carrier TOP
* Adjustable front and rear ride height
* Steering column with three Ackerman positions
* Aluminum pedals with spring system
* Magnesium wheels set TOP-KART 130-210 (Optional Douglas Wheels)
* TOP front/rear wheel hubs (ant.65mm, post. 90mm)
* Chrome stub axles with D.25mm shaft (end 17mm) with 10mm screw

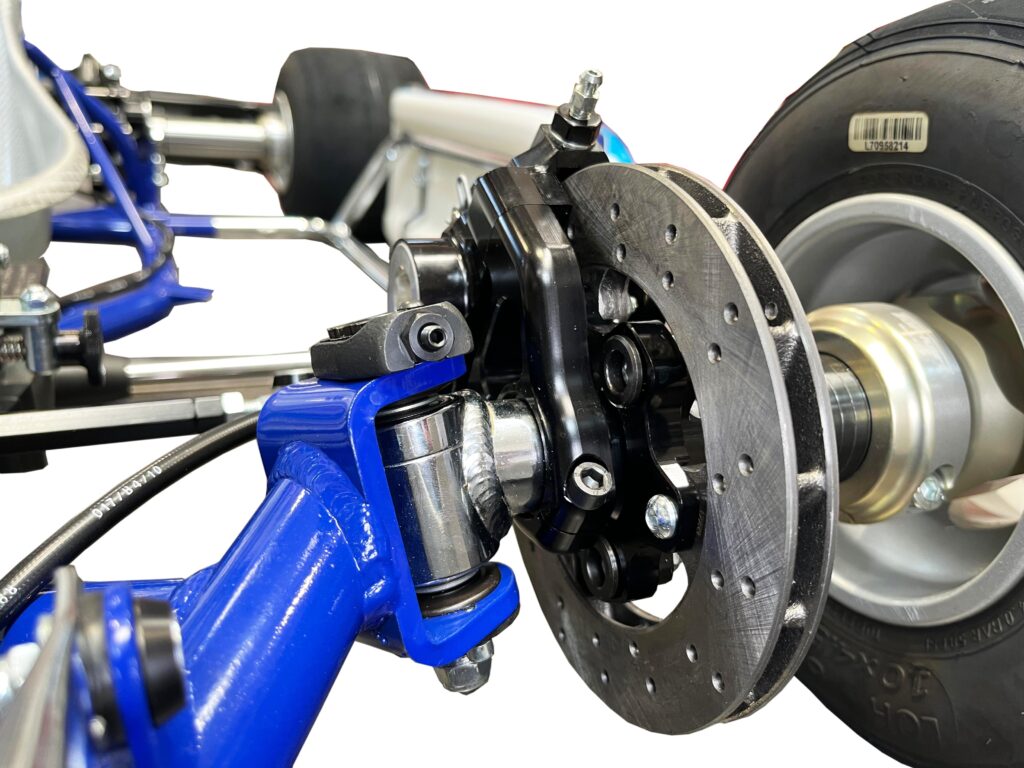

* Self adjusting V11 brake system CRG
* Light alloy brake caliper support black anodized
* Seat IMAF F6 Silver with TOP-KART logo
* Removable Tank 9,0lt.
* Steering Wheel Alcantare with logo TOP-KART
* Front spoiler KG 507 pearl white, with CIK fixing system
* Side pods KG 507 pearl white
* Front Panel KG 507 pearl white (508 Optional)
* Rear Bumper KG C3
* Alluminum muffler support for all exhauts
* TOP-KART XX graphics, including tank, rear spoiler, floor panel
* Adjustable aluminum foot rest black anodized
